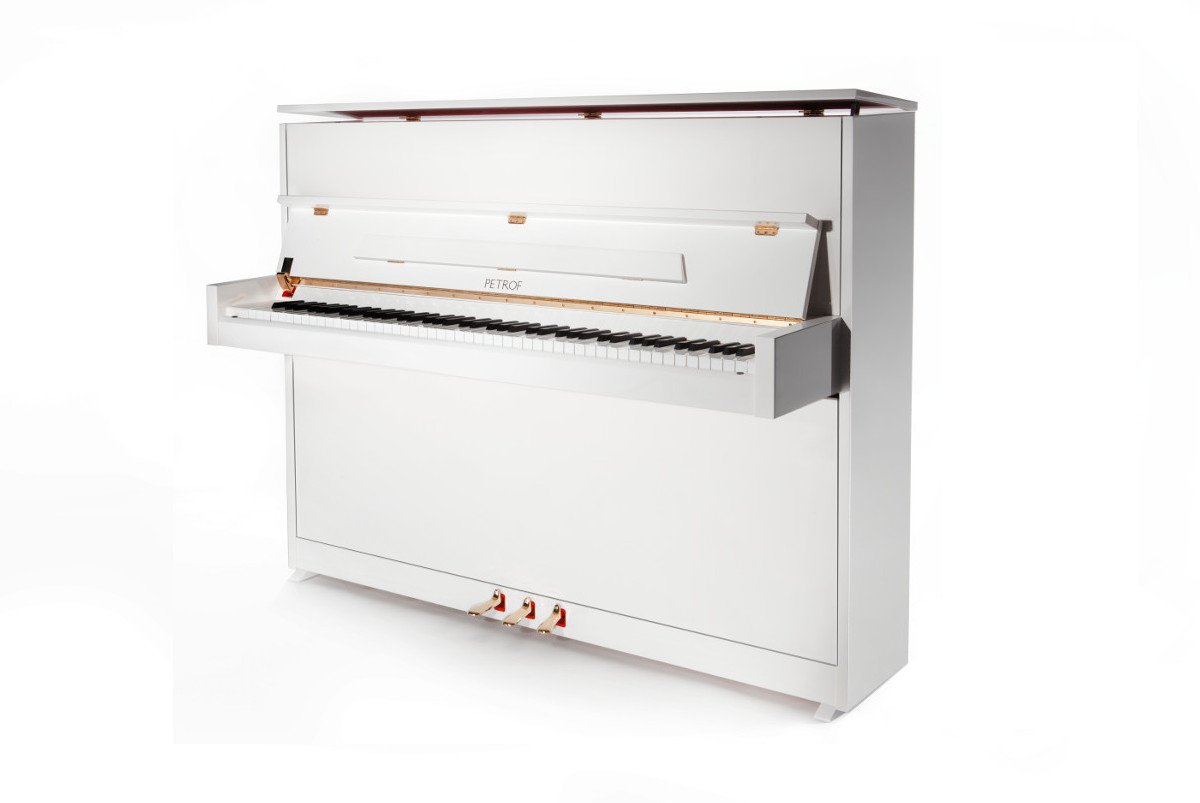

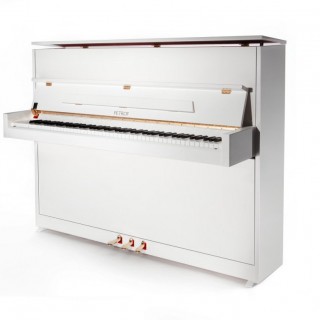

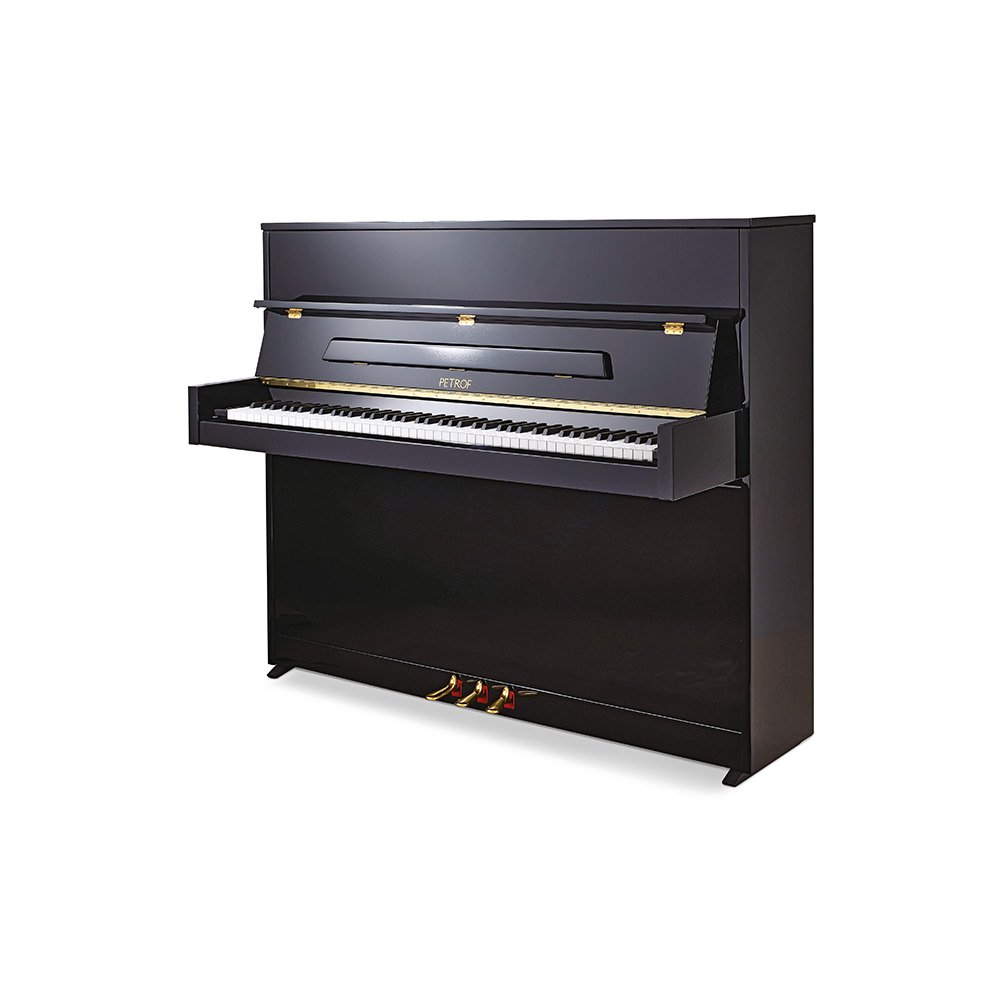

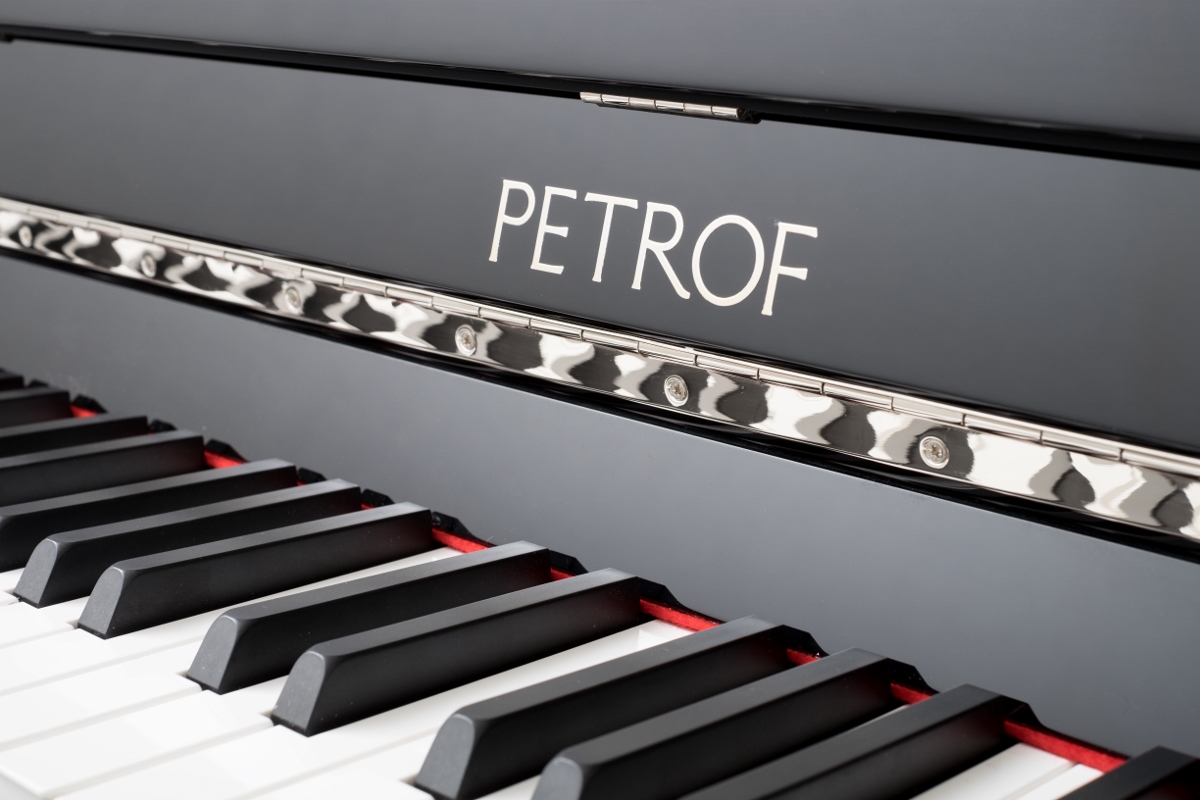

Konsol piyano P118 S1 orta sinif konsol piyanolarin en küçügüdür. Özellikle ögrenme ve pratik amaçlidir. Model S1 özellikle küçük yapisiyla ufak odalar için çok uygundur.
a - 545 mm
b - 1180 mm
Genişlik - 1443 mm
Ağırlık - 212 kg
| depth (mm)
|
545 |
| Width (mm) | 1443 |
| Height (mm) | 1180 |
| Weight (kg) | 212 |
| Sound board material | Resonance spruce wood |
| Active area of soundboard (m²) | 1,0605 |
| Ribs (number, shape) | 9, spherical |
| Soundboard construction | wedgewise tapered 9 mm in upper section - 7 mm in lower section |
| Cast iron plate | Wet sand casting |
| Surfacing of iron plate | nitrocellulose paint with bronze dust added |
| Pin block - material | Multiplex beech plywood, density 800 - 850 kg/m3 |
| Wooden frame construction, material | beech, frame construction |
| Cut off bar (corner cross rib) - material, number | beech, 1 |
| Cabinet material | MDF, plywood, solid wood |
| Bridge - treble | beech wood |
| Bridge - bass | beech wood |
| Bridge pins | steel - round tips |
| Agraffes material - number | brass, 88 |
| Strings - material | steel wire Röslau Germany, copper winding Degen Germany |
| Hitching of plain strings | double |
| Dampers - number | 1 - 70 |
| Pedals | left - Piano pedal, midle - Muffler (moderator) pedal, right - Forte pedal |
| Castors | no |
| Felts colour | red |
| Hydraulic slow close fallboard mech. | yes |
